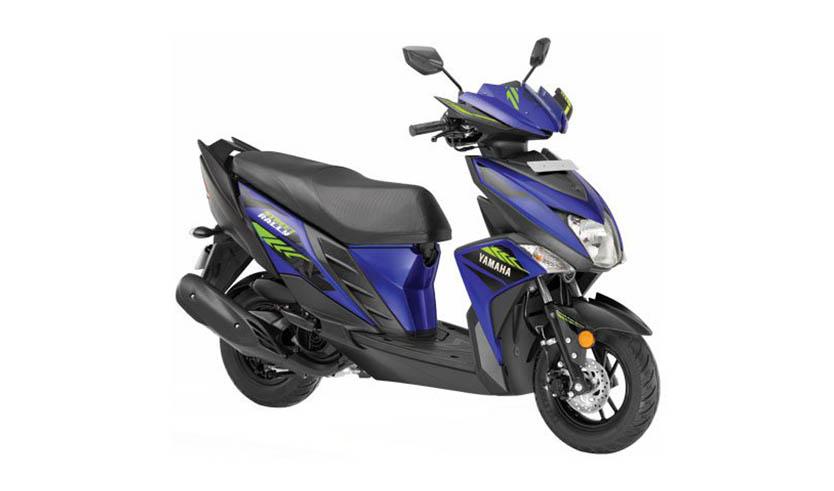

Yamaha Ray ZR Street Rally 113

Yamaha Ray ZR Street Rally 113

NRs. 220900

Compare

Engine Displacement (CC)

Air-Cooled, 4-Stroke, SOHC, 2-Valve Single Cylinder

Fuel Type

Petrol

No Of Gears

V-Belt Automatic

Mileage (ARAI) kmpl

66 Kmpl

Expand All

Engine

Engine Type

Air-Cooled, 4-Stroke, SOHC, 2-Valve Single Cylinder

Engine Displacement (CC)

113 cc

Power (PS@rpm)

7.1 PS @ 7500 rpm

Torque (Nm@rpm)

8.1 Nm @ 5000 rpm

Bore

50 mm

Stroke

4 Stroke

No Of Cylinders

N/A

Drive Type

V-belt automatic

Valves (per cylinder)

2 Fuel System

Digital

Fuel Type

Petrol

Ignition

CDI(Capacitor Discharge lgnition)

Transmission

No Of Gears

V-Belt Automatic

Brakes

Brakes Front

Hydraulic single disc brake

Brakes Rear

Mechanical leading trailing drum brake

Performance and Fuel economy

Mileage (ARAI) kmpl

66 Kmpl

0-60 (km/h)

12 Top Speed (Km/h)

86 Kmph

Chassis and Suspension

Chassis Type

Underbone

Suspension-Front

Telescopic

Suspension-Rear

Unit swing

Tyres and Wheels

Tyre Size (Front)

90/100 - 10

Tyre Size (Rear)

90/100 - 10

Wheel Size

Front :-10 inch Rear :-10 inch

Tyre Type

Tubeless

Wheels Type (Pressed Steel/ Alloy)

Alloy

Dimensions

LengthWidthHeight

18207001115

Wheelbase(mm)

1270 mm

Ground Clearance (mm)

130 mm

Fuel Capacity (Litres)

5.2 Ltrs

Kerb Weight

103 Kg

Electricals

Battery

12 V - 5 Ah (10 H)

Head Lamp

12V 35/35W XI, Halogen Bulb

Projector head light

N/A

Pilot Lamps

N/A

LED tail lights

N/A

Warranty

Standard Warranty (Years)

Standard Warranty (kilometers)

Service Cost

Air Filter Service Cost

N/A

Air Filter Service Frequency

N/A

Spark Plug Service Cost

N/A

First year Service Cost

N/A

Second year Service Cost

N/A

Third year Service Cost

N/A

Fourth year Service Cost

N/A

Fifth year Service Cost

N/A

Count of free services/kms.

N/A

The Latest

‌

PRICE IN NEPAL

‌

Yamaha Ray ZR Street Rally 113

Key Specifications

Engine Displacement (CC)

Air-Cooled, 4-Stroke, SOHC, 2-Valve Single Cylinder

Fuel Type

Petrol

No Of Gears

V-Belt Automatic

Mileage (ARAI) kmpl

66 Kmpl

Engine

Engine Type

Air-Cooled, 4-Stroke, SOHC, 2-Valve Single Cylinder

Engine Displacement (CC)

113 cc

Power (PS@rpm)

7.1 PS @ 7500 rpm

Torque (Nm@rpm)

8.1 Nm @ 5000 rpm

Bore

50 mm

Stroke

4 Stroke

No Of Cylinders

N/A

Drive Type

V-belt automatic

Valves (per cylinder)

2

Fuel System

Digital

Fuel Type

Petrol

Ignition

CDI(Capacitor Discharge lgnition)

Transmission

No Of Gears

V-Belt Automatic

Brakes

Brakes Front

Hydraulic single disc brake

Brakes Rear

Mechanical leading trailing drum brake

Performance and Fuel economy

Mileage (ARAI) kmpl

66 Kmpl

0-60 (km/h)

12

Top Speed (Km/h)

86 Kmph

Chassis and Suspension

Chassis Type

Underbone

Suspension-Front

Telescopic

Suspension-Rear

Unit swing

Tyres and Wheels

Tyre Size (Front)

90/100 - 10

Tyre Size (Rear)

90/100 - 10

Wheel Size

Front :-10 inch Rear :-10 inch

Tyre Type

Tubeless

Wheels Type (Pressed Steel/ Alloy)

Alloy

Dimensions

Length*Width*Height

1820*700*1115

Wheelbase(mm)

1270 mm

Ground Clearance (mm)

130 mm

Fuel Capacity (Litres)

5.2 Ltrs

Kerb Weight

103 Kg

Electricals

LengthWidthHeight

18207001115
